Session Replay (iOS): Watch playbacks of user digital experiences

Overview

Welcome to the Mixpanel Session Replay iOS SDK(Closed Alpha)!

Mixpanel Session Replay helps you quickly understand your customers and make better product decisions by combining quantitative and qualitative user insights.

Availability

Currently, iOS Session Replay is in invite-only Alpha access for customers on our Enterprise plan.

For any questions about Session Replay or iOS Alpha access, please reach out to your Account Manager. Note: as our Alpha program is early access, our functionality may have bugs and cause crashes. Be sure to test thoroughly before enabling in production.

Quick Start Guide

Prerequisite

You are already a Mixpanel customer and have the Mixpanel iOS SDK installed. If not, please follow this doc (opens in a new tab) to get started.

Install

You can integrate the Mixpanel iOS Session Replay SDK into your iOS project by embedding the XCFramework below.

Open Your Xcode Project

Open your existing Xcode project where you want to integrate the Mixpanel iOS Session Replay SDK.

Add Mixpanel Session Replay Package

Download and Unzip the below zip to your local drive

MixpanelSessionReplay.xcframework.zip (opens in a new tab)

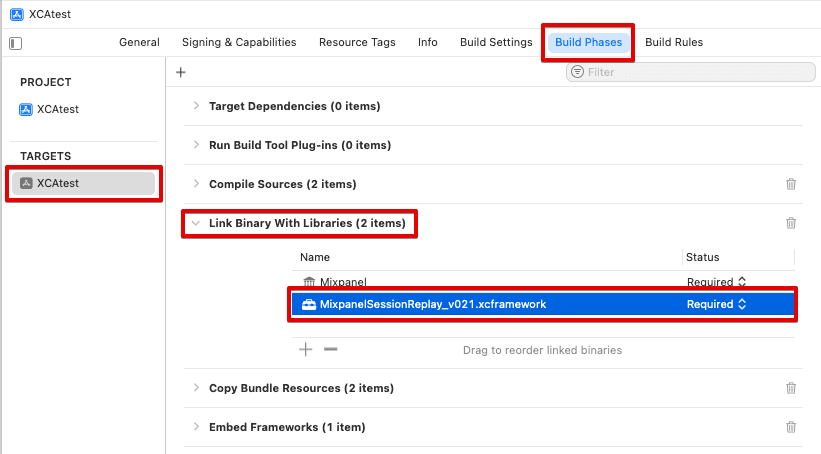

  • In Xcode, navigate to your Target's Build Phases and add the .xcframework file you just unzipped to the "Link Binary With Libraries" section

Link Binary With Libraries

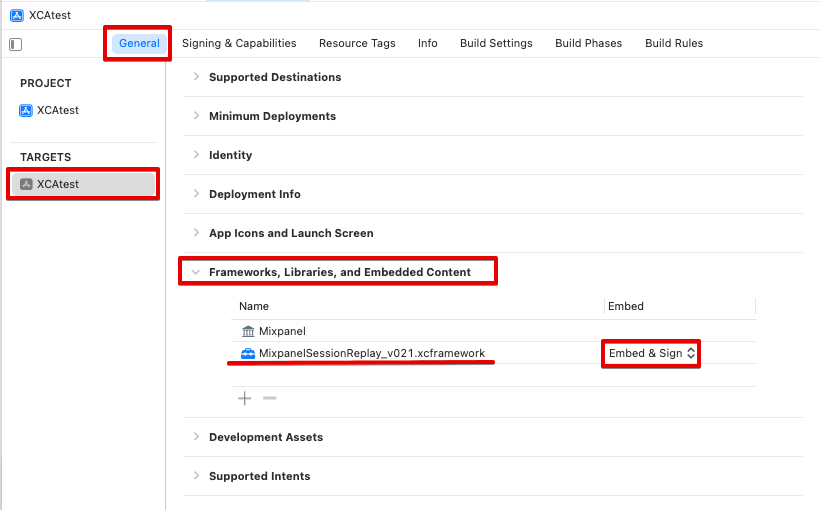

  • Now go to your Target's General settings...

Choose Package

  • And set the framework's Embed setting to "Embed & Sign" in the "Frameworks, Libraries, and Embedded Content" section

Initialize

You should have the main Mixpanel SDK installed, if not, please refer to Prerequisite Add the initialization code at the start of your app's lifecycle.

SwiftUI

import Mixpanel
import MixpanelSessionReplay

struct SessionReplayDemoApp: App {
    @State private var isActive = true
    @Environment(\.scenePhase) private var scenePhase

    var body: some Scene {
        WindowGroup {
            ...
        }
        .onChange(of: scenePhase) { _, newPhase in
            let config = SessionReplayConfig(wifiOnly: false, recordSessionsPercent: 100.0)
            let sessionReplayInstance = SessionReplay.initialize(token: "MY_TOKEN", distinctId: "distinctId", config: config)
            #if DEBUG
            sessionReplayInstance.loggingEnabled = true
            #endif
            sessionReplayInstance.startRecording()
        }
    }
}


UIKit

import Foundation
import UIKit

import Mixpanel
import MixpanelSessionReplay

class AppDelegate: UIResponder, UIApplicationDelegate {

    func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]? = nil) -> Bool {
        Mixpanel.initialize(token: token, trackAutomaticEvents: true)
        Mixpanel.mainInstance().loggingEnabled = true

        return true
    }

    func applicationDidBecomeActive(_ application: UIApplication) {
        let config = SessionReplayConfig(wifiOnly: false, recordSessionsPercent: 100.0)
        let sessionReplayInstance = SessionReplay.initialize(token: "MY_TOKEN", distinctId: "distinctId", config: config)
        #if DEBUG
        sessionReplayInstance.loggingEnabled = true
        #endif
        sessionReplayInstance.startRecording()
    }

}


Configuration Options

Session Replay Config

Upon initialization you can provide a SessionReplayConfig object to specify the configuration. Currently, there are only two config options:

wifiOnly - when set to true replay events will only be flushed to the server when the device has a WiFi connection, if there is no WiFi, flushes are skipped and the events remain in the in-memory queue until WiFi is restored (or until the queue reaches its limit and the oldest events are evicted to make room for newer events). When set to false replay events will be flushed with any network connection, including cellular. - Default: true

recordSessionsPercent - this is a value between 0.0 and 100.0 that controls the sampling rate for recording session replays, at 0.0 no sessions will be recorded, at 100.0 all sessions will be recorded. - Default: 0.0

maskAllText - which allows users to determine whether all text elements in the session replay should be masked. By default, this option is enabled (true)

maskAllImages - to control whether all images in the session replay should be masked. This option is also enabled by default (true)

Logging

Developers can enable or disable logging with the loggingEnabled property of the SessionReplay object.

Example

let token = Mixpanel.mainInstance().apiToken
let distinctId = Mixpanel.mainInstance().distinctId
let config = SessionReplayConfig(wifiOnly: false, recordSessionsPercent: 50.0)
let sessionReplayInstance = SessionReplay.initialize(token: token, distinctId: distinctId, config: config)
sessionReplayInstance.loggingEnabled = true


Enable Session Replay

To start the session replay recording, you only need to call this once so we recommend calling this at the beginning of your app’s lifecycle:

SessionReplay.getInstance()?.startRecording()


To stop the session replay recording:

SessionReplay.getInstance()?.stopRecording()

Privacy Settings

By default, Mixpanel will hide UILabel and UITextField to exclude more sensitive views from recording, to mark any view as sensitive:

// SwiftUI
Image("family photo")
	.replaySensitive()

// UIKit
SessionReplay.getInstance()?.addSensitiveView(mySensitiveView)


Using Session Replay

Please refer to Using Session Replay

Legal (Beta Terms)

Our Session Replay Beta Service Addendum can be found here (opens in a new tab).

FAQ

How does Session Replay work in iOS?

Session Replay observes user interactions within your app, capturing UI hierarchy changes and storing them as images, which are then sent to Mixpanel. Mixpanel reconstructs these images, applying recorded events as an end-user completes them. Within Mixpanel’s platform, you can view a reconstruction of your end-user’s screen as they navigate your app. However, Session Replay is not a literal video recording of your end-user’s screen; end-user actions are not video-recorded.

What is the expected impact on my app performance?

There is no impact on your app’s performance when there are no user interactions or nothing changes on the screen. When there are user interactions, expect approximately 1% to 3% more CPU usage and around 1MB more memory consumption. There is no impact on disk I/O because Session Replay does not write anything to your disk. In our own testing, the overhead is unnoticeable, however if you experience any performance degradations after installing Session Replay, please reach out to us.

What is the bandwidth impact and will it cause users to incur additional data charges?

The bandwidth impact of Session Replay depends on the setting of the wifiOnly parameter.

When wifiOnly is set to true (default setting), replay events are only flushed to the server when the device has a WiFi connection. If there is no WiFi, flushes are skipped, and the events remain in the in-memory queue until WiFi is restored. This ensures no additional cellular data is used, preventing users from incurring additional data charges.

When wifiOnly is set to false, replay events are flushed with any available network connection, including cellular. In this case, the amount of cellular data consumed depends on the intensity of user interactions and the typical session length of your app. Users may incur additional data charges if large amounts of data are transmitted over cellular connections.

How does Session Replay for mobile work if my app is offline?

Session Replay for mobile currently doesn’t work in offline mode.

Am I able to sample our session replay collection rate?

Yes, you can configure the percentage of total replays that our SDK will capture as below.

let config = SessionReplayConfig(wifiOnly: false, recordSessionsPercent: 50.0)
let sessionReplayInstance = SessionReplay.initialize(token: token, distinctId: distinctId, config: config)

This out-of-the-box sampling method is random sampling: your SDK will decide randomly whether the currently SDK instance load falls into the sample or not. We recommend starting at 1% and increasing from there. Please note: if you expect low traffic, you can increase the starting sampling percentage. It is a good idea to control this with your own API, so you can change it on the fly without redeploying your app. While you're testing, we recommend that you set it to 100 and this ensure every user session will be sent to Mixpanel. Once testing is done, we recommend lowering this value in production.

Does it work in SwiftUI/UIKit apps?**

Yes, please refer to this section

Does it support Obj-C based app?

Yes, Objective-C and Swift are fully interoperable.

Can I prevent Session Replay from recording sensitive content?

If your app is UIKit-based, all UITextField and UILabel components are masked by default, and there is no way to unmask them. You can also mask any view manually by calling:

// UIKit
SessionReplay.getInstance()?.addSensitiveView(mySensitiveView);

If your app is SwiftUI-based, the automatic masking for UITextField and UILabel does not work well in the current alpha version, so you need to manually mask any view.

Image("family photo").replaySensitive();

For More FAQ, please refer to Mixpanel Session Replay FAQ
